Optical Glass

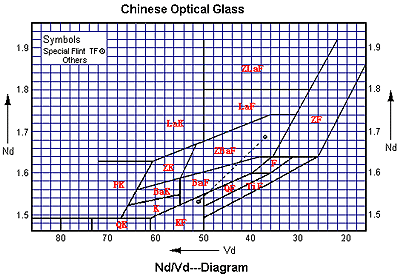

Optical Glass material is the most common type because of its excellent optical properties such as high light transmission and environmental stability. There are many types of glass materials suitable for making optical components. The following "glass map" shows the commercially available glasses from Chinese glass manufacturer:


The specific selection depends on the optical performance requirement, environmental suitability, ease of fabrication and cost. The main characteristics of an optical material are represented by its refractive index (Nd) and its dispersion index (Abbe number).

You may need specific information when selecting the material for a custom component. The data in the following is intended to assist in these situations The simplest way to select the right materials is to let OP-Unite know your applications, and our engineers would like to help you to select the right material from Chinese glass. Hereby you can see the ＾Optical Glass Contrast Table￣ within the glass manufacturer of China, Schott, Hoya and Ohara´ More details please tape the key-press to see it.

Optical Glass Contrast Table
CODE
nd
vd
CHINESE
SCHOTT
OHARA
HOYA
QK series type
470668 1.47047 66.83 H-QK1 FK1 FSL1 FC1
487700 1.48746 70.04 H-QK3 　　 　 　
487704 1.48749 70.44 H-QK3L N-FK5S-FSL5 FC5
K series type
500621 1.49967 62.07 K1 K11　 　
500660 1.50047 66.02 H-K2 BK4BSL4 BSC4
505647 1.50463 64.72 H-K3 BK5　 　
508611 1.50802 61.05 K4A ZKN7 ZSL7 ZNC7
510634 1.51007 63.36 H-K5 BK1 BSL1BSC1
511605 1.51112 60.46 H-K6 K7 NSL7 C7
515606 1.51478 60.63 H-K7 　　 　
516568 1.51602 56.79 K8   NSL2 C2
516642 1.51680 64.20 H-K9L N-BK7S-BSL7 BSC7
518590 1.51818 58.95 H-K10 S-NSL3 E-C3 　
526602 1.52638 60.61 H-K11 BALK1NSL21 BACL1
534555 1.53359 55.47 H-K12 ZK5 ZSL5 ZNC5
519617 1.51878 61.69 H-K16 　　 BACL3
522595 1.52249 59.48 H-K50 N-K5 S-NSL5 C5
523586 1.52307 58.64 H-K51 B270NSL51 C12
BaK series type
530605 1.53028 60.47 H-BaK1 　　 　
540597 1.53996 59.72 H-BaK2 N-BAK2 S-BAL12 BAC2
547628 1.54678 62.78 H-BaK3 BAL21 　
552634 1.55248 63.36 H-BaK4 N-PSK3 BAL23 PCD3
561583 1.56069 58.34 BaK5 　　 　
564608 1.56388 60.76 H-BaK6 N-SK11 S-BAL41 BACD11
569560 1.56883 56.04 H-BaK7 N-BAK4 S-BAL14 BAC4
573575 1.57250 57.49 H-BaK8 N-BAK1 S-BAL11 BAC1w
574565 1.57444 56.45 BaK9 BAK6 BAC6BAC6
560612 1.55963 61.21 BaK11 SK20 BAL50 　
ZK series type
569629 1.56888 62.93 H-ZK1 PSK2 BAL22PCD2
583595 1.58313 59.46 H-ZK2 SK12 S-BAL42BACD12
589613 1.58913 61.25 H-ZK3 N-SK5S-BAL35 BACD5
609589 1.60881 58.86 H-ZK4 SK3 BSM3BACD3
611558 1.61117 55.77 ZK5 SK8 BSM8BACD8
613586 1.61272 58.58 H-ZK6 N-SK4 S-BSM4 BACD4
613606 1.61309 60.58 H-ZK7 　　 　
614551 1.61405 55.12 ZK8 SK9 BSM9BACD9
620603 1.62041 60.34 H-ZK9 N-SK16 S-BSM16BACD16
622567 1.62280 56.71 H-ZK10 N-SK10 S-BSM10 E-BACD10
639555 1.63854 55.45 H-ZK11 N-SK19 S-BSM18BACD18
603606 1.60311 60.60 H-ZK14 N-SK14 S-BSM14 BACD14
607595 1.60729 59.46 H-ZK15 SK7BSM7 BACD7 　
614564 1.61375 56.40 H-ZK19 SK6 BSM6BACD6
617539 1.61720 53.91 H-ZK20 SSK1 BSM21BACED1
623581 1.62299 58.12 H-ZK21 N-SK15 S-BSM15 BACD15
607567 1.60738 56.65 H-ZK50 SK2 BSM2 BACD2
618551 1.61765 55.14 ZK51 SSK4 BSM24BACED4
LaK series type
660574 1.65950 57.35 H-LaK1 LAK11 LAL11LAC11
692545 1.69211 54.54 H-LaK2 N-LAK9S-LAL9 LAC9
747510 1.74693 50.95 H-LaK3 　　 　 　
641601 1.64000 60.20 H-LaK4L N-LAK21 S-BSM81 LACL60
678555 1.67790 55.52 H-LaK5 N-LAK12 S-LAL12 LAC12
678555 1.67790 55.52 H-LaK5A N-LAK12 S-LAL12LAC12
694534 1.69350 53.38 H-LaK6 LAKN13 S-LAL13 LAC13
713538 1.71300 53.83 H-LaK7 N-LAK8S-LAL8 LAC8
720503 1.72000 50.34 H-LaK8A N-LAK10 LAL10 LAC10
651559 1.65113 55.89 LaK10 N-LAK22LAL54 LACL2
697562 1.69680 56.18 H-LaK12 LAK24LAL64 　
652584 1.65160 58.40 H-LaK50 N-LAK7 S-LAL7LAC7
652584 1.65160 58.40 H-LaK50A N-LAK7S-LAL7 LAC7
697555 1.69680 55.53 H-LaK51 N-LAK14S-LAL14 LAC14
729547 1.72916 54.68 H-LaK52 N-LAK34S-LAL18 TaC8
755523 1.75500 52.32 H-LaK53 N-LAK33 S-YGH51  TaC6
755523 1.75500 52.32 H-LaK53A N-LAK33 S-YGH51  TaC6
734515 1.73400 51.49 H-LaK54 　S-LAL59 TaC4
KF series type
501572 1.50058 57.21 KF1 K10 FTL10C10
515545 1.51539 54.48 KF2 KF3 NSL33CF3
526510 1.52629 51.00 KF3 KF2 NSL32CF2
517522 1.51742 52.31 KF6 KF6 NSL36CF6
517522 1.51742 52.15 H-KF6 　 　 　
QF series type
548459 1.54811 45.87 QF1 LLF1 PBL1FEL1
548458 1.54814 45.82 H-QF1 N-LLF1S-TIL1 E-FEL1
561468 1.56091 46.78 QF2 LLF3PBL3 FEL3
575413 1.57502 41.31 QF3 LF7PBL27 FL7
582420 1.58215 42.03 QF5 LF3PBL23 FL3
532488 1.53172 48.76 QF6 LLF6PBL6 FEL6
532488 1.53172 48.84 H-QF6 N-LLF6S-TIL6 E-FEL6
541472 1.54072 47.20 QF8 LLF2PBL2 FEL2
561452 1.56138 45.24 QF9 LLF4PBL4 FEL4
578411 1.57842 QF11 LF4 PBL24FL4
596392 1.59551 39.18 QF14 F8 PBM8 F8
581409 1.58144 40.89 H-QF50 N-LF5S-TIL25 E-FL5
581409 1.58144 40.89 QF50 LF5 PBL25FL5
581409 1.58144 40.89 UQF50 ULF5　 　
Fseries type
603380 1.60342 38.01 F1 F5 PBM5F5
603380 1.60342 38.01 H-F1 F-TIM5 E-F5
613370 1.61293 36.96 F2 F3PBM3 F3
617366 1.61659 36.61 F3 F4 PBM4F4
620364 1.62005 36.35 F4 F2 PBM2F2
620364 1.62005 36.35 H-F4 N-F2 S-TIM2E-F2
624359 1.62435 35.92 F5 PBM11 　 　
625356 1.62495 35.57 F6 F7　 F7
636354 1.63636 35.35 F7 F6 PBM6F6
624368 1.62364 36.81 F12 F10 PBM10　
626357 1.62588 35.70 F13 F1 PBM1F1
640346 1.63890 34.57 F51 SF7 PBM27FD7
BaF series type
548540 1.54809 53.95 BaF1 BALF5 BAL5　
570495 1.56970 49.45 BaF2 BAF2 BaF2BaF2
580539 1.57960 53.87 BaF3 BALF4 BAL4BAFL4
H-BaF3 series type
583465 1.58271 46.47 BaF4 BaF3 BAM3BaF3
606439 1.60562 43.88 BaF5 BaF4 BAM4BaF4
608462 1.60801 46.21 BaF6 BAF52　 BAF7
614400 1.61413 40.03 BaF7 　　 　
626391 1.62604 39.10 BaF8 BASF1 BAM21BAFD1
603425 1.60323 42.48 BaF51 BASF5　 BAFD5
571530 1.57135 53.97 H-BaF53 S-BAL3 　
ZBaF series type
622531 1.62231 53.14 ZBaF1 SSK2 BSM22BACED2
　 1.80166 44.26 H-ZBaF1 　　 NbFD14
640483 1.63962 48.27 ZBaF2 　　 　
657511 1.65691 51.12 H-ZBaF3 　　 　
664355 1.66426 35.45 ZBaF4 BASF2 BAH22BAFD2
671473 1.67103 47.29 H-ZBaF5 S-BAH10 　
607494 1.60729 49.40 ZBaF8 BAF5 BAM5BAF5
620498 1.62012 49.80 ZBaF11 BSM29 BACED9
639452 1.63930 45.18 ZBaF13 BAF12 BAM12BAF12
651383 1.65128 38.32 ZBaF15 BAH24 BAFD4
667484 1.66672 48.42 H-ZBaF16 BAFN11 S-BAH11BAF11
668419 1.66755 41.93 ZBaF17 BASF6 BAH26BAFD6
670392 1.66998 39.20 ZBaF18 BASF12 BAH32　
702410 1.70181 41.01 H-ZBaF20 N-BASF52 S-BAH27BAFD7
702410 1.70181 41.01 ZBaF20A BASF52 BAH27BAFD7
　 1.70181 41.01 H-ZBaF20A 　　 　
723380 1.72340 37.99 H-ZBaF21 BASF51 S-BAH28BAFD8
723380 1.72340 37.99 ZBaF21A BASF51 BAH28BAFD8
658509 1.65844 50.85 H-ZBaF50 N-SSK5 S-BSM25BACED5
683445 1.68273 44.50 ZBaF51 BAF50 BAH51BAF22
670472 1.67003 47.20 H-ZBaF52 N-BAF10　 BAF10
ZF series type
648338 1.64769 33.84 ZF1 SF2 PBM22FD2
648338 1.64769 33.84 H-ZF1 S-TIM22 E-FD2
673322 1.67270 32.17 ZF2 SF5 PBM25FD5
673322 1.67270 32.17 H-ZF2 N-SF5 S-TIM25E-FD5
717295 1.71736 29.50 ZF3 SF1 PBH1 FD1
717295 1.71736 29.50 H-ZF3 N-SF1 S-TIH1E-FD1
728283 1.72825 28.32 ZF4 SF10 PBH10FD10
728283 1.72825 28.32 H-ZF4 N-SF10 S-TIH10E-FD10
740282 1.74000 28.24 ZF5 SF3 PBH3FD3
755275 1.75520 27.53 ZF6 SF4 PBH4FD4
755275 1.75520 27.53 H-ZF6 N-SF4 S-TIH4E-FD4
805255 1.80518 25.46 ZF7L SF6 PBH6FD6
805255 1.80518 25.46 H-ZF7L N-SF6 S-TIH6FD60
654337 1.65446 33.65 ZF8 SF9 PBM29FD9
689312 1.68893 31.16 H-ZF10 N-SF8 S-TIM28E-FD8
689312 1.68893 31.18 ZF10 SF8 PBM28FD8
699301 1.69894 30.05 H-ZF11 N-SF15 S-TIM35E-FD15
699301 1.69895 30.07 ZF11 SF15 PBM35FD15
762266 1.76182 26.61 H-ZF12 S-TIH14 FD140
762266 1.76182 26.55 ZF12 SF14 PBH14FD14
785257 1.78472 25.72 H-ZF13   S-TIH11FD110
785258 1.78472 25.76 ZF13 SF11 PBH11FD11
918215 1.91761 21.51 ZF14 SF58　 　
741278 1.74077 27.76 ZF50 SF13 PBH13FD13
741278 1.74077 27.76 H-ZF50 S-TIH13 E-FD13
785261 1.78470 26.08 ZF51 SF56 PBH23FDS3
847238 1.84666 23.78 ZF52 SF57 PBH53FDS9
847238 1.84666 23.78 H-ZF52 SFL57 S-TIH53FDS90
LaF series type
694492 1.69362 49.19 LaF1 LAL58 LACL5
717479 1.71700 47.89 LaF2 LAF3 LAM3LAF3
744449 1.74400 44.90 H-LaF3 N-LAF2 S-LAM2E-LAF2
750350 1.74950 34.99 H-LaF4 N-LAF7 S-NBH51E-LAF7
757478 1.75719 47.81 H-LaF6 S-LAM54 NBF2
757477 1.75700 47.71 H-LaF6L S-LAM54 NBF2
782371 1.78179 37.09 LaF7 LAF22 LAM62NBFD7
784413 1.78427 41.30 H-LaF8 LAF25　 　
784439 1.78443 43.88 H-LaF9 LAF10　 　
788474 1.78831 47.39 H-LaF10 N-LAF21 S-LAH64TAF4
788475 1.78800 47.49 H-LaF10L N-LAF21 S-LAH64TAF4
773496 1.77250 46.96 H-LaF50A N-LAF28 S-LAH66TAF1
700481 1.7000048.10 H-LaF51 S-LAM51 　 　
786442 1.78590 44.19 H-LaF52 N-LAF331 S-LAH5NBFD11
743492 1.74330 49.22 H-LaF53 N-LAF35 S-LAM60NBF1
800423 1.79952 42.24 H-LaF54 N-LAF36 S-LAH52NBFD12
720437 1.72000 43.68 H-LaF62 S-LAM52 　
ZLaF series type
802443 1.80166 44.26 H-ZLaF1 LASF11　 NBFD14
803467 1.80300 46.66 H-ZLaF2 LASF1 LAH62
855366 1.85544 36.59 H-ZLaF3 LASF13　 TAFD13
804466 1.80400 46.58 H-ZLaF50B N-LASF44 S-LAH65TAF3
804466 1.80400 46.58 H-ZLaF50A N-LASF44 S-LAH65TAF3
805396 1.80450 39.64 H-ZLaF51 S-LAH63 NBFD3
806410 1.80610 40.95 H-ZLaF52 N-LASF43 S-LAH53NBFD13
　 1.80610 40.95 H-ZLaF52A S-LaH53 　
834372 1.83400 37.17 H-ZLaF53 N-LASF40 S-LAH60NBFD10
834372 1.83400 37.17 H-ZLaF53A N-LASF40 S-LAH60NBFD10
835430 1.83500 42.98 H-ZLaF55 N-LASF41 S-LAH55TAFD5
806333 1.80610 33.27 H-ZLaF56 　　 NBFD15
806333 1.80610 33.27 H-ZLaF56A 　　 NBFD15
883408 1.88300 40.79 H-ZLaF68 N-LASF31 S-LAH58 TAFD30
TiF series type
580380 1.58013 38.02 TiF2 　　 　
593358 1.59270 35.79 TiF3 TIFN5 FTM16FF5
TF series type
612441 1.61242 44.09 TF3 KzFS1　 ADF10
613443 1.61340 44.30 TF4 KzFSN4 BPM51ADF40
654396 1.65412 39.63 TF5 KzFSN5 BPH5ADF50
FK series type
497816 1.49700 81.61 H-FK61 N-PK52A S-FPL51 FCD1
D-K series type
516641 1.51633 64.06 D-K9 L-BSL7
D-ZK series type
583595 1.58313 59.46 D-ZK2 L-BAL42 M-BACD12
589613 1.58912 61.25 D-ZK3 L-BAL35 M-BACD5N
D-LaK series type
694532 1.69350 53.20 D-LaK6 L-LAL13 M-LAC130
D-ZBaF series type
714389 1.71430 38.90 D-ZBaF58
D-ZF series type
689312 1.68893 31.16 D-ZF10 L-TIM28
D-LaF series type
731405 1.73077 40.5 D-LaF79 L-LAM69 M-LAF81
D-ZLaF series type
806410 1.80610 40.95 D-ZLaF52 L-LAH53 M-NBFD130

More details please download our Optical Glass Catalogue and set up them in your computer: CDGM Glass 97 and CDGM Glass V3.1! We hope you will use our data sheet for your future design then we can support you in very positive position, any questions or help please contact our design engineers today.

Announce:
Our products are in accordance with the Restriction of Hazardous Substances Directive (RoHS) 2002/95/EC.
