Laser Beam Expander

General Specifications

Parameter

Commercial Grade

Design Wavelength 532nm

Wavelength Range

532nm,1064nm or 632.8nm

Recommended Beam Diameter

1.0-1.5mm

Dimension Tolerance +/-0.2mm
Surface Quality
60/40 S/D

Wavefront Distortion

¦Ë/2 (p-v, over clear aperture, @ 632.8nm)

Coatings

Broadband AR Coatings WAR @ 532-800nm or Multilayer AR Coatings VAR @1064nm

Housing Material

Black anodized aluminum


LBE0101
LBE0201

LBE0301


Part No.

Expansion Ratio

Input Aperture(mm)

Exit Aperture(mm)

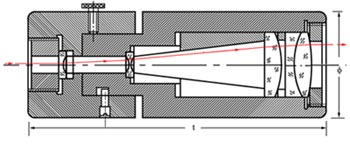

¦µ(mm)

t(mm)
LBE0101
5X
3
8
25.0
59
LBE0201
10X
3
15
30.0
92
LBE0301
20X
2.5
30
45.0
143

Order information: Part No. - Wavelength Range
For example: LBE0101 - 532nm

Note: Other Expansion Ratio and wavelength are upon request.
